Technical Specifications:
Design std : BS 5156
Body : DI/ASTM A216 GR WCB/CF8/CF8M
Bonnet : DI/ASTM A216 GR WCB/CF8/CF8M
Compressor : DI/ASTM A216 GR WCB/CF8/CF8M
Spindle : CS/SS 304/SS 316/SS 410
Lining : PFA/FEP/PVDF/ETFE/PP
Lining thickness : 3mm Minimum
Flange connection : ANSI B16.5, #150/Customer requirement
➤ We are manufacturing wide range of the plug valves.
➤ Manually lever operated, gear operated, actuatror operated.

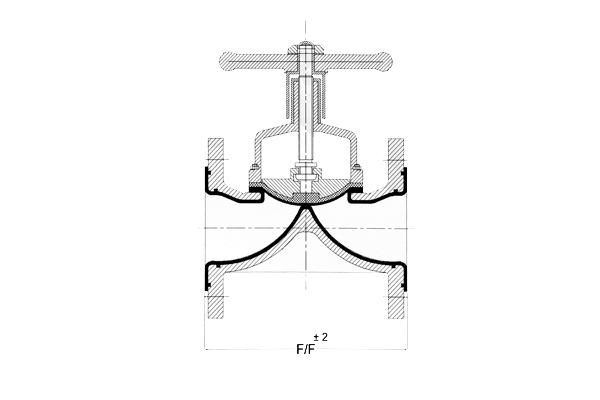

Dimensional Data:
|
SIZE (NB) |
F/F (mm) |
|
15 |
114 |
|
20 |
123 |
|
25 |
133 |
|
40 |
165 |
|
50 |
196 |
|
65 |
222 |
|
80 |
260 |
|
100 |
312 |
|
150 |
412 |
| 200 |
530 |
Testing Data:
Hydraulic Test : Body-15 kg/cm²
:seat-11 kg/cm³
Pneumatic test : seat-6 kg/cm²
Spark test : 15 KVDC
