Technical Specifications:
Body: DI
Body Fabricated
Flange IS 2062/ASTM A 105/SS 304 / SS316
Pipe : CS ASTM A106 GR.B /SS 304 / SS 316
Lining : PFA/FEP/PVDF/HDPE/PP
Lining thickness : 3mm Minimum
Flange connection: ANSI B16.5, #150/Customer requirement

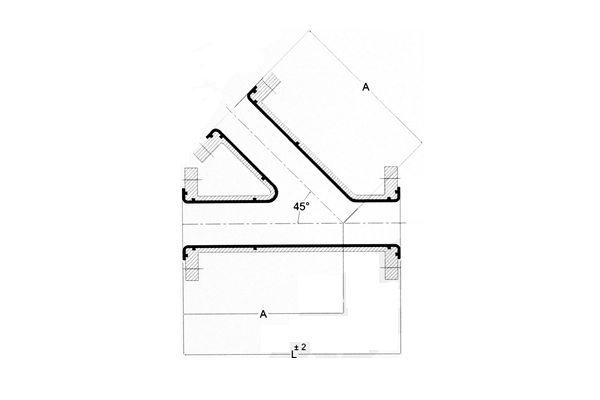

| SIZE (NB) | L (mm) |
| 25 | 178 |
| 40 | 204 |
| 50 | 228 |
| 80 | 280 |
| 100 | 330 |
| 150 | 406 |
Testing Data:
Hydraulic Test : -20 kg/cm²
Spark test : 15 KVDC
