LINED INSTRUMENT TEE Technical Specifications: Body : DI Body Fabricated Flange:IS 2062/ASTM A 105 / SS 304 / SS316 Pipe:CS ASTM A106 GR.B /SS 304 / SS 316 Lining:PFA/FEP/PVDF / HDPE/PP Lining thickness: 3mm Minimum Flange connection:ANSI B16.5, #150/Customer requirement ➤ We are manufacturing wide range of the Instrument tee SIZE(NB) L(mm) A(mm) 25 25…
LINED SHORT TEE Technical Specifications: Body : DI Body Fabricated Flange:IS 2062/ASTM A 105 / SS 304 / SS316 Pipe:CS ASTM A106 GR.B /SS 304 / SS 316 Lining:PFA/FEP/PVDF / HDPE/PP Lining thickness: 3mm Minimum Flange connection:ANSI B16.5, #150/Customer requirement ➤ We are manufacturing wide range of the Short tee. ➤ short tee used for…
Technical Specifications: Body: DI Body Fabricated Flange IS 2062/ASTM A 105/SS 304 / SS316 Pipe : CS ASTM A106 GR.B /SS 304 / SS 316 Lining : PFA/FEP/PVDF/HDPE/PP Lining thickness : 3mm Minimum Flange connection: ANSI B16.5, #150/Customer requirement SIZE (NB) L (mm) 25 178 40 204 50 228 80 280 100 330 150 406…
Lined Equal tee / Unequal tee (jacketed / non jacketed) Technical Specifications: Body : DI Body fabricated Flange : IS 2062/ASTM A 105/SS 304/SS316 Pipe :CS ASTM A106 GR.B/SS 304/SS 316 Lining : PFA/FEP/PVDF/HDPE/PP Lining thickness : 3mm Minimum Flange connection : ANSI B16.5, #150/Customer requirement…
45° LINED ELBOW Technical Specifications: Body : DI Body fabricated Flange : IS 2062 / ASTM A 105 /SS 304 /SS316 Elbow : WPB / SS 304 /SS…
Technical Specifications: Flange :IS 2062 / ASTM A 105 /SS 304 /SS316 Pipe :CS ASTM A 106 GR.B/SS 304 / SS 316 (SCH 40) Lining : PTFE/PFA/FEP/PVDF/HDPE/PP Lining thickness : 3mm Minimum Flange connection: ANSI B16.5, #150/Customer requirement ➤We are manufacturing wide range of the pipe Minimum liner face (R/F] thickness(T) of the pipe should…

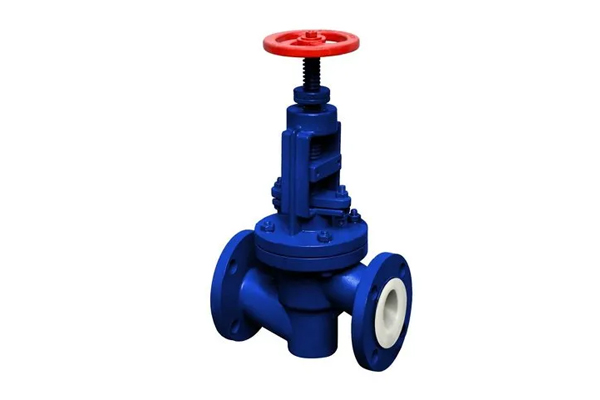

Technical Specifications: Body : DI /ASTM A216 GR WCB/CF8/CF8M Spindle : MS /SS304 / SS316 Lining : PFA/FEP/PVDF/HDPE/PP Lining thickness : 3mm Minimum Flange connection: ANSI B16.5, #150/Customer requirement ➤ We are manufacturing wide range of the valves. Testing Data: Hydraulic Test : Body-15 kg/cm² : seat-11 kg/cm² Pneumatic test : seat-6 kg/cm² Spark test…
Technical Specifications: Body : ASTM A216 GR WCB/CF8/CF8M Ball : ASTM A216 GR WCB/CF8/CF8M (Fabricated:MS/SS304/SS316) Lining : PFA/FEP/PVDF/HDPE/PP Lining thickness : 3mm Minimum Flange connection: ANSI B16.5, #150/Customer requirement ➤ We are manufacturing wide range of the valves. Dimensional Data: SIZE (NB) L (mm) 25 250 40 250 50 250 80 250 Testing Data: Hydraulic…
Technical Specifications: Body : DI/ASTM A216 GR WCB/CF8/CF8M Ball : SOLID PTFE Lining : PFA/FEP/PVDF/HDPE/PP Lining thickness : …
