Design std : BS 5351
Body : DI/ASTM A216 GR WCB/CF8/CF8M
Ball : DI/ASTM A216 GR WCB/CF8/CF8M
Lining : PFA/FEP/PVDF/HDPE/PP
Lining thickness : 3mm Minimum
Flange connection : ANSI B16.5, #150/Customer requirement

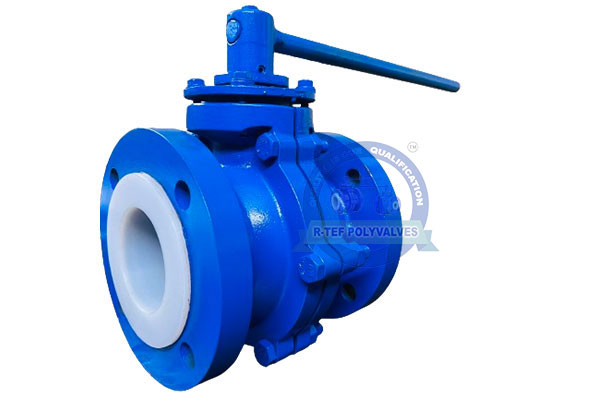

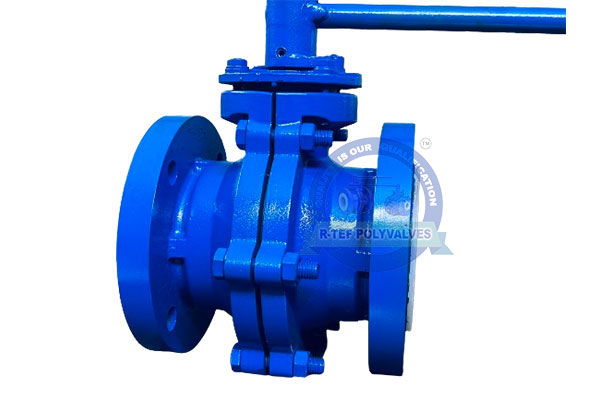

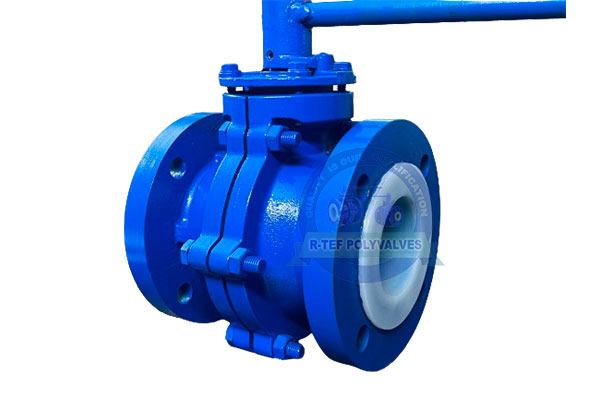

➤ We are manufacturing wide range ofthe 2pc design ball valves.
➤Manually lever operated, gear operated, actuatror operated.

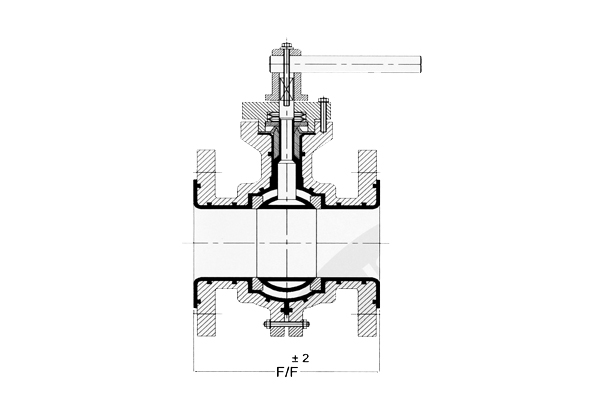

Dimensional Data:
|
SIZE (NB) |
F/F (mm) |
|
15 |
117 |
|
20 |
117 |
|
25 |
127 |
|
40 |
165 |
|
50 |
178 |
|
65 |
190/203* |
|
80 |
203 |
|
100 |
228 |
|
150 |
267 |
| 200 |
294 |
Testing Data:
Hydraulic Test : Body-15 kg/cm²
:seat-11 kg/cm³
Pneumatic test : 2 seat-6 kg/cm²
Spark test : 15 KVDC
