Design std : BS 5155
Body : ASTM A216 GR WCB/CFB/CFBM
Flapper : ASTM A216 GR WCB/CFB/CF8M
(Fabricated:MS/SS304/SS316)
Lining : PFA/PFA/FEP/PVDF/HDPE/PP
Lining thickness : 3mm Minimum
Flange connection: ANSI B16.5, #150/Customer requirement
➤ We are manufacturing wide range ofthe 2pc design ball valves.
➤ Manually lever operated, gear operated, actuatror operated

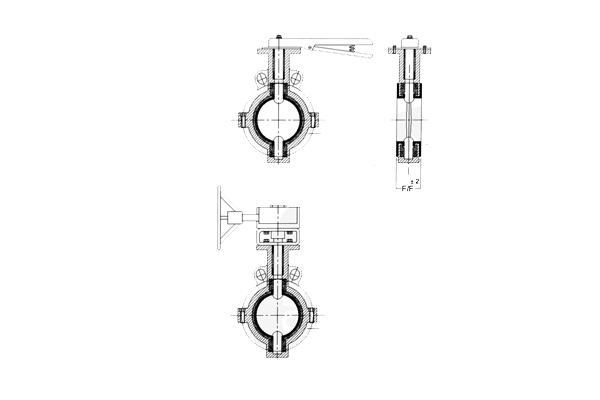

Dimensional Data:
|
SIZE (NB) |
F/F (mm) |
|
50NB |
43 |
|
65NB |
46 |
|
80NB |
46 |
|
100NB |
52 |
|
150NB |
56 |
|
200NB |
60 |
|
250NB |
68 |
|
300NB |
78 |
|
350NB |
83 |
| 400NB |
102 |
Testing Data:
Hydraulic Test : Body-15 kg/cm²
:seat-11 kg/cm³
Pneumatic test : seat-6 kg/cm²
Spark test : 15 KVDC
