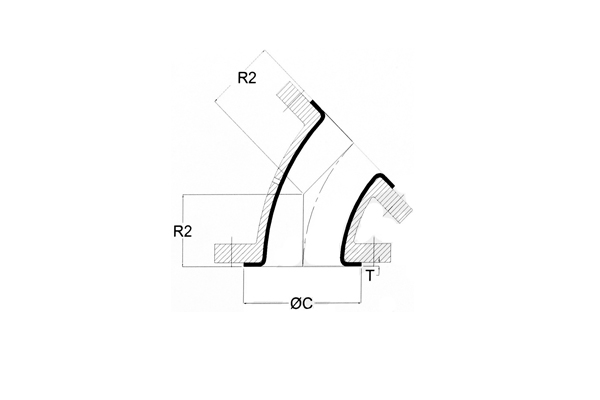

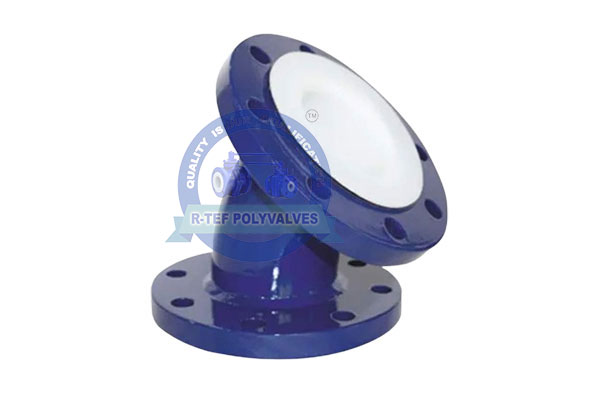

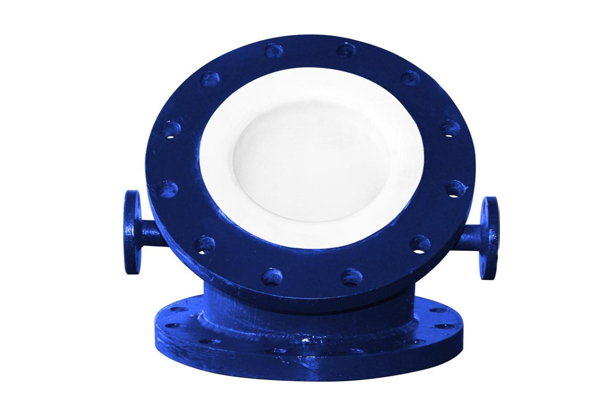

45° LINED ELBOW

Technical Specifications:

Body                      : DI
Body fabricated
Flange                   : IS 2062 / ASTM A 105 /SS 304 /SS316
Elbow                    : WPB / SS 304 /SS 316
Lining                    : PTFE/PFA/FEP/PVDF/HDPE/PP
Lining thickness    : 3mm Minimum
Flange connection: ANSI B16.5, #150/Customer requirement

➤ We are manufacturing wide range of the Elbow.
➤ Minimum liner face (R/F) thickness(T) of the elbow should be 80% of liner thickness

Dimensional Data:

SIZE (NB) ØC(mm) R2(mm)
15 35 44
20 43 44
25 51 44
40 73 57
50 92 64
80 127 76
100 157 102
150 216 127
200 270 140

Testing Data:

Hydraulic Test  : -20 kg/cm²
Spark test : 15 KVDC

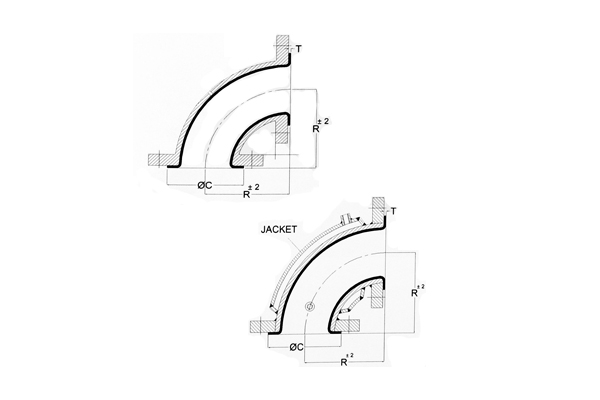

90° LINED ELBOW NON JACKETED

Technical Specifications:

Body                      : DI
Body fabricated
Flange                   : IS 2062 / ASTM A 105 /SS 304 /SS316
Elbow                    : WPB / SS 304 /SS 316
Lining                    : PTFE/PFA/FEP/PVDF/HDPE/PP
Lining thickness    : 3mm Minimum
Flange connection: ANSI B16.5, #150/Customer requirement

➤ We are manufacturing wide range of the Elbow.
➤ Minimum liner face (R/F) thickness(T) of the elbow should be 80% of liner thickness.

Dimensional Data:

SIZE (NB) ØC(mm) R(mm)
15 35 65
20 43 75
25 51 89
40 73 102
50 92 114
65 105 127
80 127 140
100 157 165
150 216 203
200 270 229

Testing Data:

Hydraulic Test  : 20 kg/cm²
Spark test : 15 KVDC
