Technical Specifications:
Body : DI
Body fabricated
Flange : IS 2062/ASTM A 105/SS 304/SS316
Pipe :CS ASTM A106 GR.B/SS 304/SS 316
Lining : PFA/FEP/PVDF/HDPE/PP
Lining thickness : 3mm Minimum
Flange connection : ANSI B16.5, #150/Customer requirement
➤ We are manufacturing wide range of the tee.

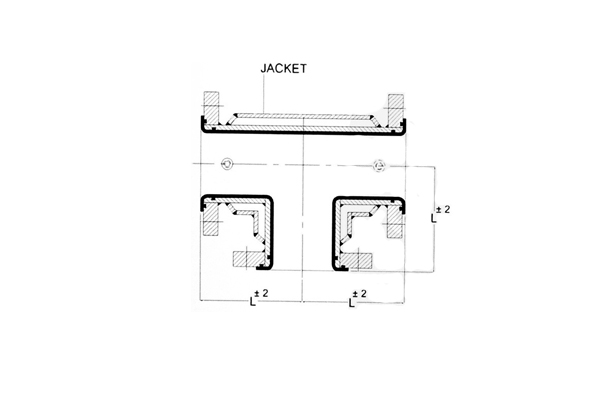

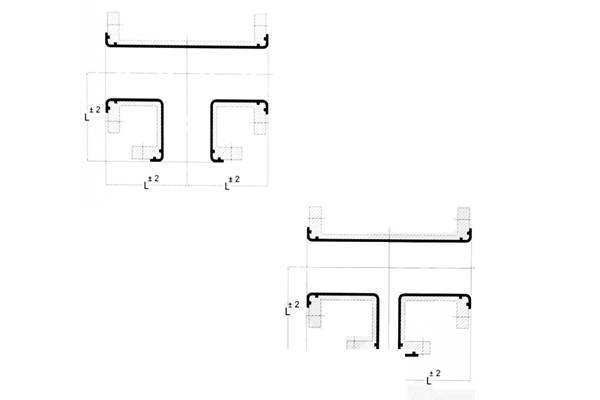

| SIZE (NB) | L (mm) |
| 20 | 75 |
| 25 | 89 |
| 40 | 102 |
| 50 | 114 |
| 65 | 127 |
| 80 | 140 |
| 100 | 165 |
| 150 | 203 |
| 200 | 229 |
| 250 | 279 |
Testing Data:
Hydraulic Test : -20 kg/cm²
Spark test : 15 KVDC
