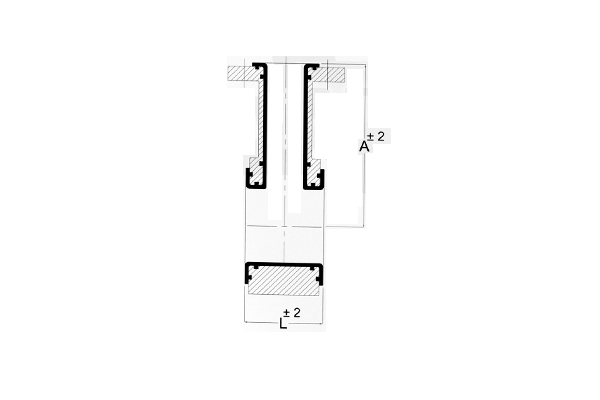

LINED INSTRUMENT TEE

Technical Specifications:

Body : DI
Body Fabricated
Flange:IS 2062/ASTM A 105 / SS 304 / SS316
Pipe:CS ASTM A106 GR.B /SS 304 / SS 316
Lining:PFA/FEP/PVDF / HDPE/PP
Lining thickness: 3mm Minimum
Flange connection:ANSI B16.5, #150/Customer requirement

➤ We are manufacturing wide range of the Instrument tee

[/dt_carousel][/vc_column_inner][/vc_row_inner]
SIZE(NB) L(mm) A(mm)
25 25 50 89
40 25 50 102
40 76 102
50 25 50 114
40 76 114
50 76 114
80 25 50 140
40 76 140
50 76 140
100 25 50 165
40 76 165
50 76 165
150 25 50 203
40 76 203
50 76 203

Testing Data:

Hydraulic Test  : -20 kg/cm²
Spark test : 15 KVDC
