Technical Specifications:
Body :DI/CF8/CF8M
Body fabricated
Flange :IS 2062/ASTM A105/SS 304/SS316
Lining :PTFE/PFA/FEP/PVDF/HDPE/PP
Lining thickness : 3mm Minimum
Flange Connection: ANSIB16.5, #150/Customer requirement

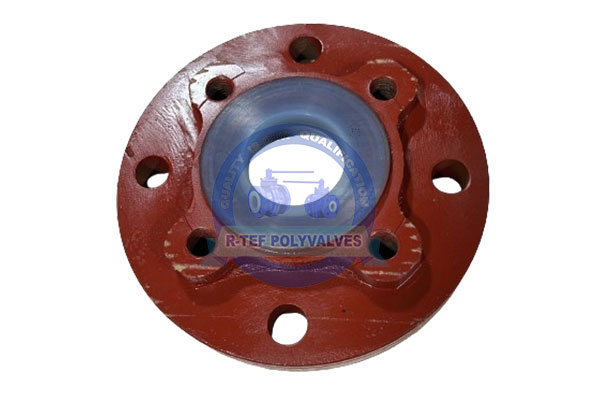

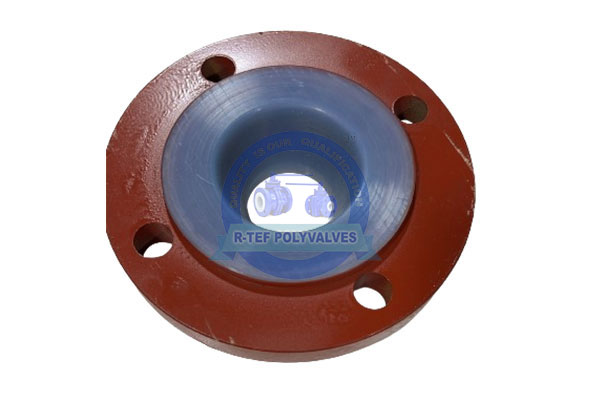

➤ We are manufacturing wide range of the Reducing flange.
Testing Data:
Hydraulic Test : -20 kg/cm²
Spark test : 15 KVDC
