Technical Specifications:
Body : DI
Body Fabricated
Flange:IS 2062/ASTM A 105 / SS 304 / SS316
Pipe:CS ASTM A106 GR.B /SS 304 / SS 316
Lining:PFA/FEP/PVDF / HDPE/PP
Lining thickness: 3mm Minimum
Flange connection:ANSI B16.5, #150/Customer requirement

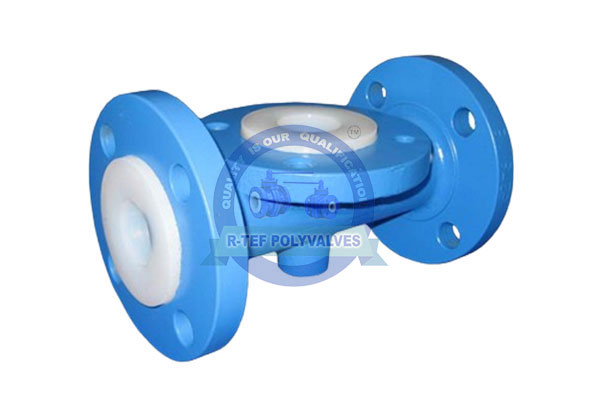

➤ We are manufacturing wide range of the Short tee.
➤ short tee used for mounting problems where space is at a primium.

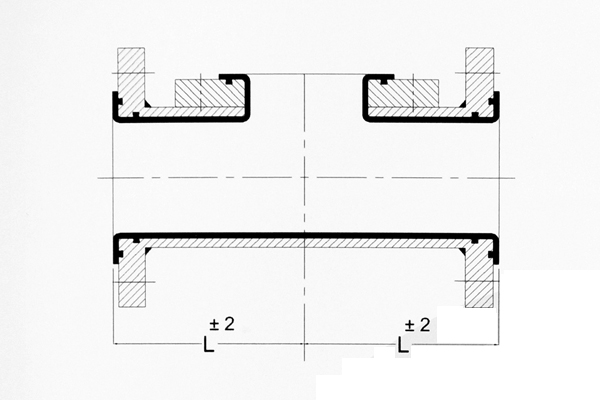

| SIZE (NB) | L (mm) |
| 25 | 89 |
| 40 | 102 |
| 50 | 114 |
| 80 | 140 |
| 100 | 165 |
| 150 | 203 |
Testing Data:
Hydraulic Test : -20 kg/cm²
Spark test : 15 KVDC
